Q.ANTUM DUO SOLAR MODULES
Q.PEAK DUO
up to 21.5 % efficiency
up to 510 Wp
12 years warranty
Q.PEAK DUO
up to 21.5 % efficiency
up to 510 Wp
25 years warranty
Q.PEAK DUO
up to 21,5 % efficiency
up to 420 Wp
12 years warranty
Q.PEAK DUO
up to 21,5 % efficiency
up to 420 Wp
12 years warranty
Q.PEAK DUO
up to 21 % efficiency
up to 410 Wp
12 years warranty
Q.PEAK DUO
up to 21 % efficiency
up to 410 Wp
25 years warranty
Q.ANTUM NEO SOLAR MODULES
Q.TRON
up to 22.3 % efficiency
up to 445 Wp
30 years warranty
Q.TRON
up to 22.5 % efficiency
up to 450 Wp
30 years warranty
Q.TRON
up to 22.3 % efficiency
up to 435 Wp
25 years warranty
Q.TRON
up to 22 % efficiency
up to 430 Wp
25 years warranty
Q.TRON benefits

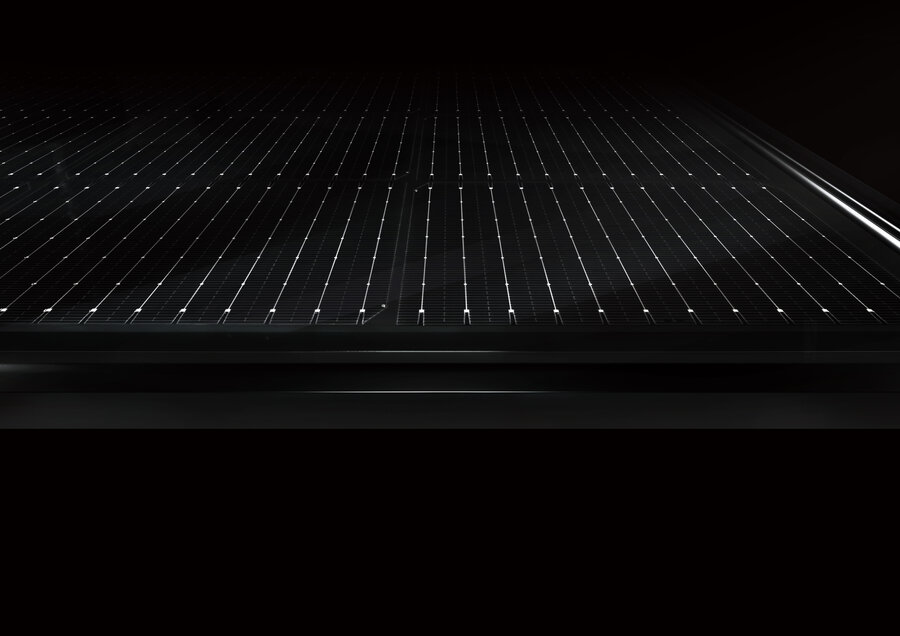

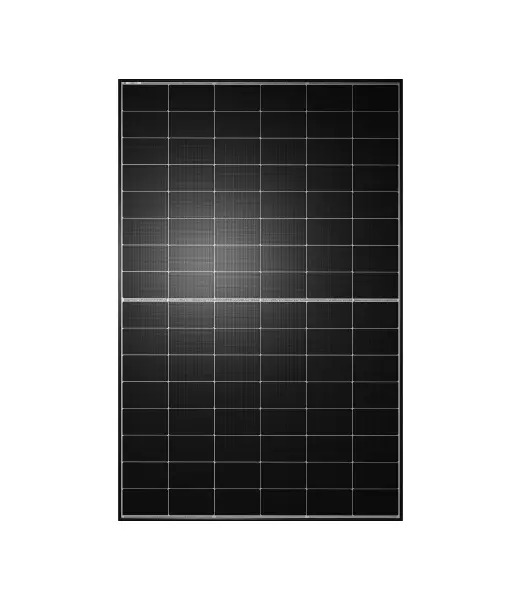

Q.TRON SOLAR MODULES
FOR OUTSTANDING QUALITY & PERFORMANCE
PROTECT YOUR ROOF EVEN FROM EXTREME WEATHER CONDITIONS
Q.TRON N-type modules are designed to resist heavy snow and windy environment even with the frame thickness of 30 mm. The thinner frame makes the module lighter providing transportation and easy installation benefits.
Q.TRON solar panels with global standard mounting option can withstand 5400 / 3600 Pa, which covers most of the regions with extreme environment conditions.
Among extreme weather conditions like storms, blizzards and high winds, hail is the most concerning type for solar panel owners looking to protect their investment. Generally, solar panels are tested to withstand hails of 25 mm diameter.
Qcells’ high quality Q.TRON solar panels are qualified to 45 mm diameter hail test, far beyond industry standard.
PERFORMANCE
- Cell Technology: 6×18 monocrystalline Q.ANTUM NEO solar half cells
- Nominal Power: 405~435Wp
- Wind/Snow Load: 5400/3600 Pa
EFFICIENCY
- Module Efficiency: Up to 22.3%
- Temperature Coefficient: -0.30%/K
- Temperature Tolerance: -40°C up to 85°C
DESIGN
- Format (including frame): 1722 mm × 1134 mm × 30 mm
- Weight: 21.2 kg
- Frame: Black anodized aluminum
- Color: All-black aesthetics
WARRANTY
- Product Warranty: 25 years
- Performance Warranty: 25 years
